Kit Specifications

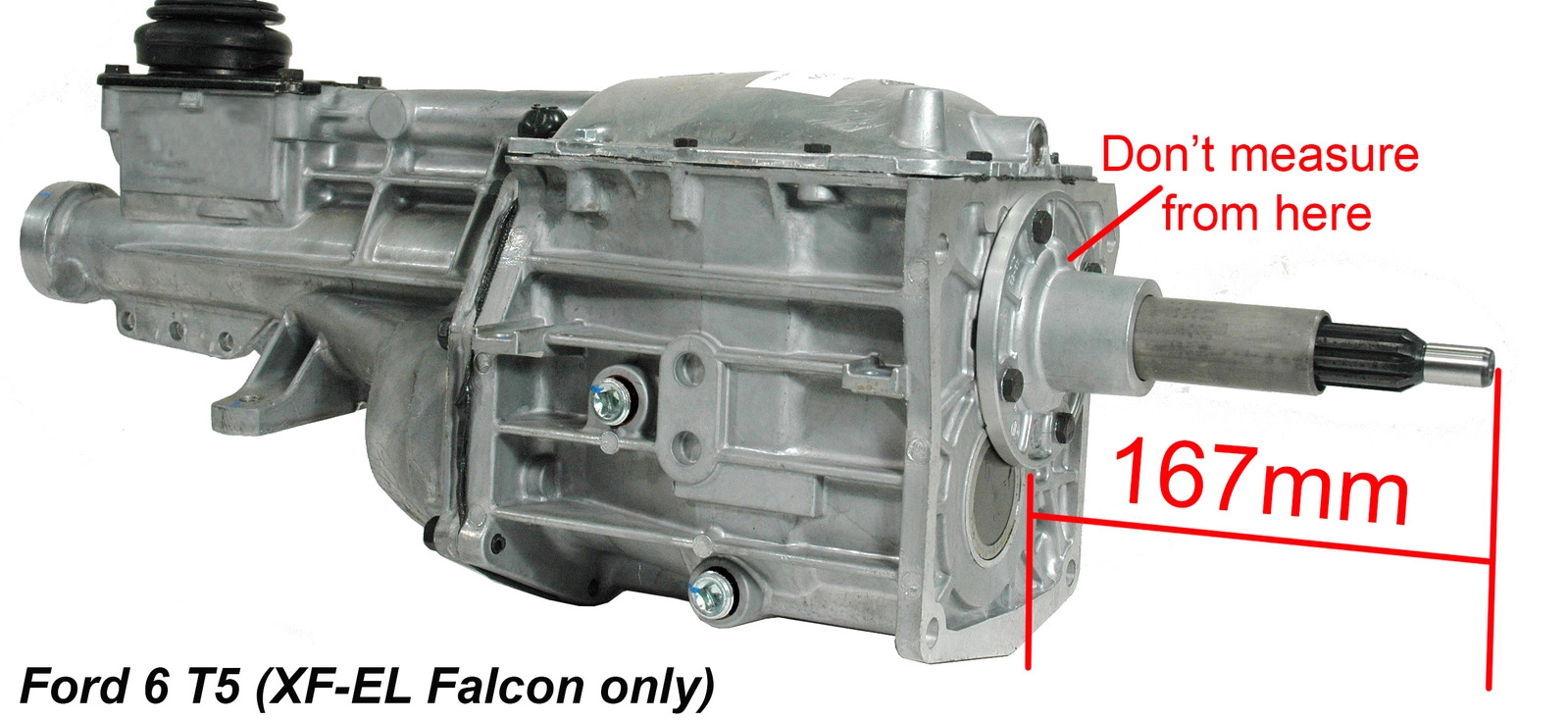

  • Must be a Ford T5 6 Cyl Gearbox from a XF, EA, EB, ED, EF or EL with an Input Shaft Length of 167mm, Refer to Images on How to Measure
  • For Use with a Cable Clutch ONLY
  • Must Use a EB, ED, EF, EL or AU V8 Small Diameter Flywheel, Less than 11" (280mm) in Diameter
  • Must Use a Left Hand 3 Bolt Starter Motor from a EB, ED, EF, EL or AU V8
  • Requires Sandwich Plate Part # SANDPLATE12 (Not Supplied)
  • Requires Throwout Fork Part # TF17 (Not Supplied)
  • Requires Release Bearing Part # TB17 (Not Supplied)
Kit Specifications
  • Must Use a EB, ED, EF, EL or AU V8 Small Diameter Flywheel, Less than 11" (280mm) in Diameter
  • Must Use a Left Hand 3 Bolt Starter Motor from a EB, ED, EF, EL or AU V8
  • Requires Sandwich Plate Part # SANDPLATE12 (Not Supplied)
  • Requires Throwout Fork Part # TF17 (Not Supplied)
  • Requires Release Bearing Part # TB17 (Not Supplied)



Compatible With

Engine Gearbox
Ford (Windsor) V8 EFI Ford T5 6 Cyl



Kit Includes

Part Part # Qty

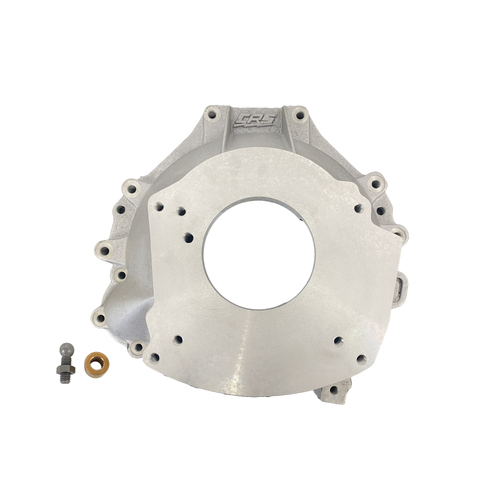

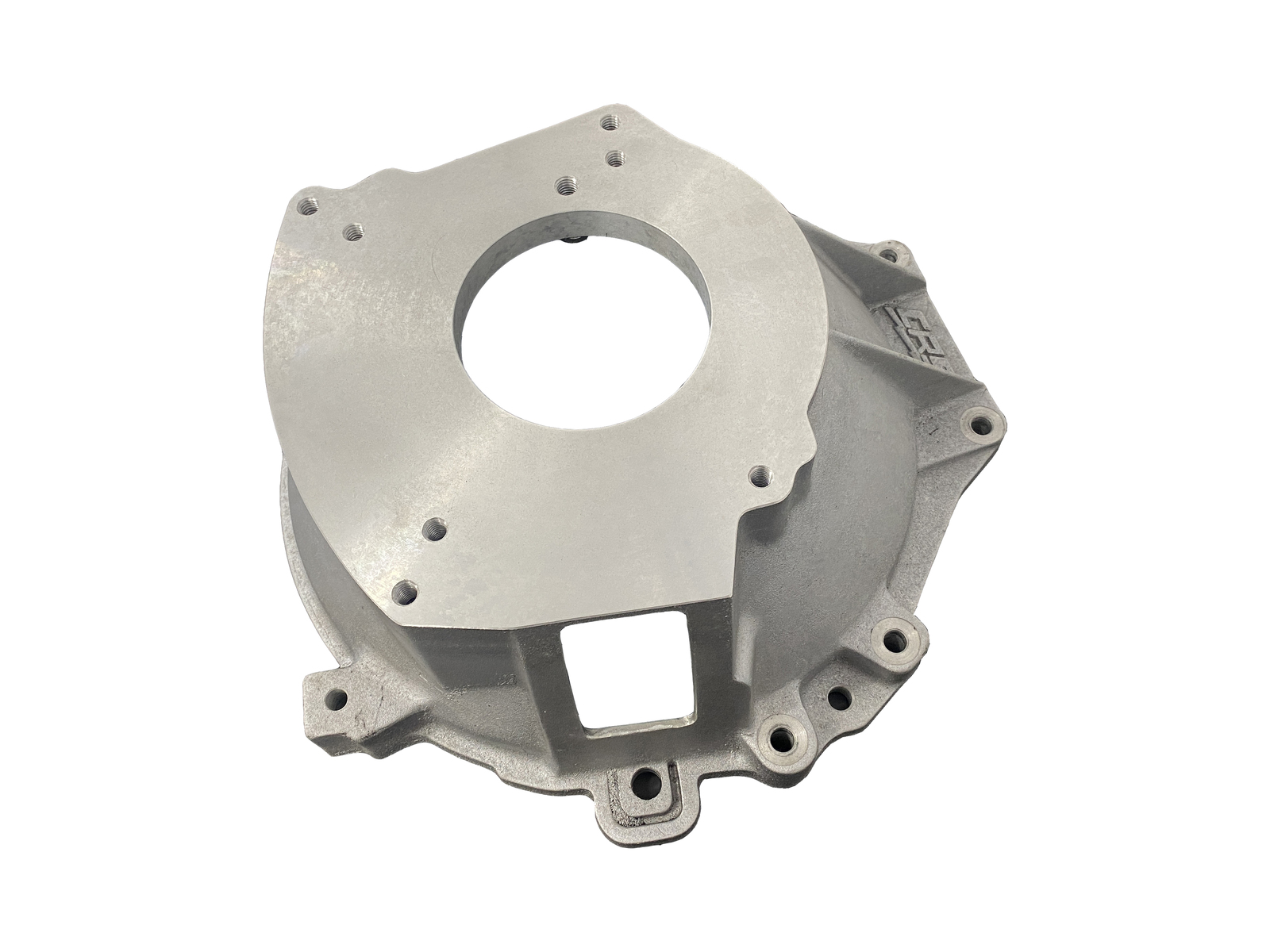

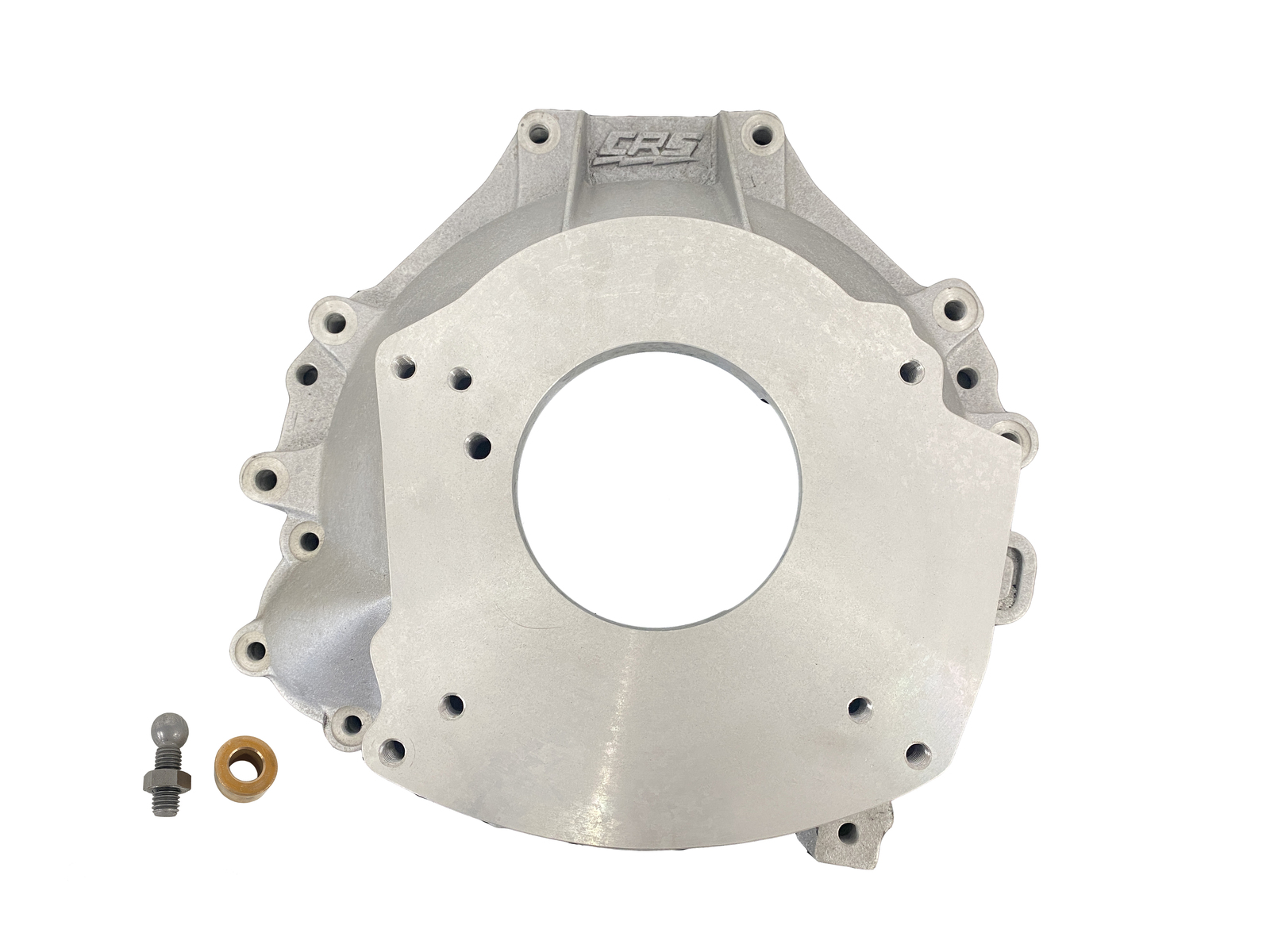

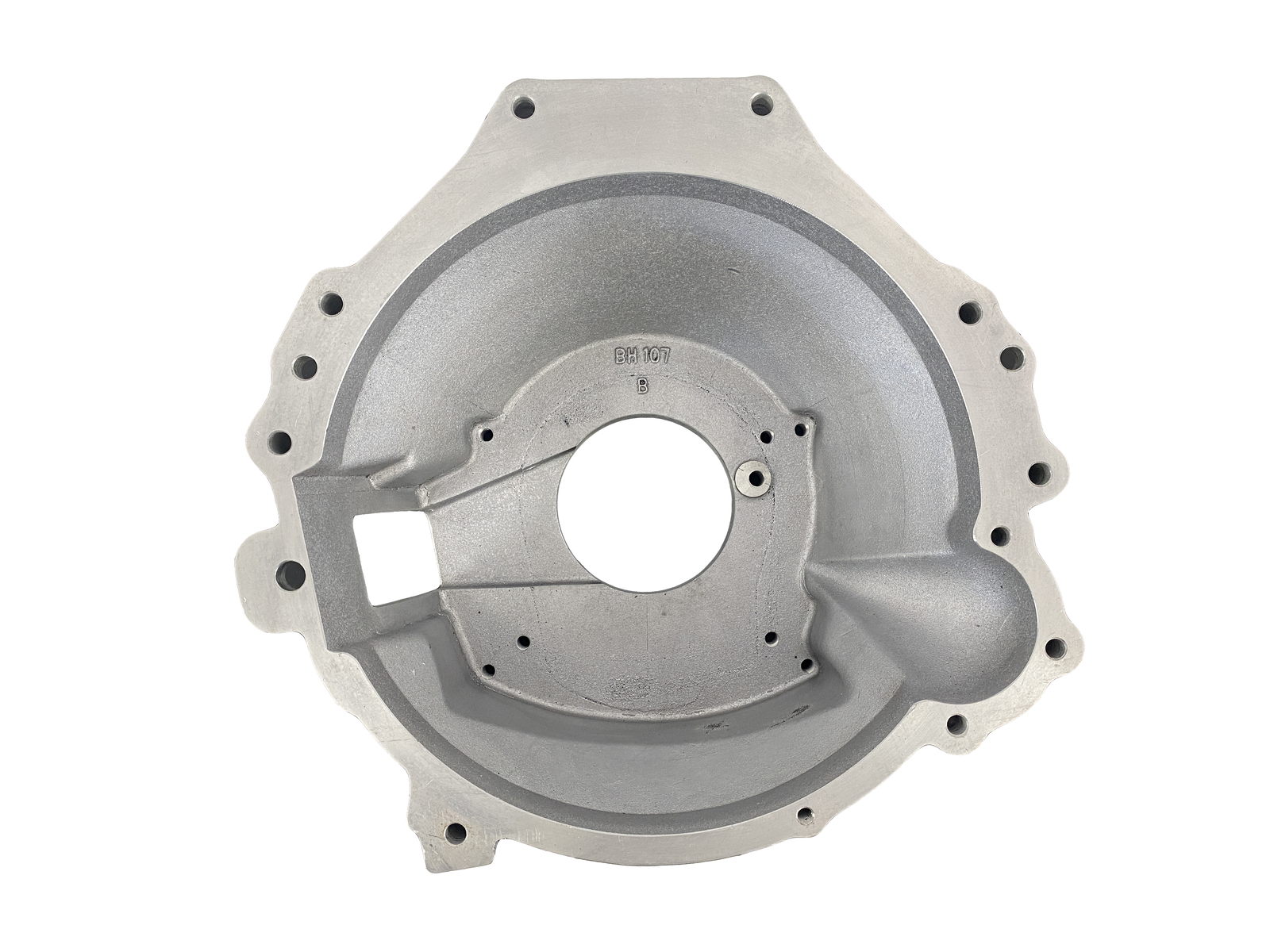

Bellhousing bh107d 1
Pivot Ball pb07 1
Spigot Bush sb19 1



Optional Extras Available for Purchase Below

Part Part #
Clutch Plate cp23
Pressure Plate pplate36
Throwout Fork tf17
Thrust Bearing & carrier  tb17
Sandwich Plate  sandplate12



SKU bh107kitft5fsb
Brand Castlemaine Rod Shop
Shipping Weight 18.0000kg
Shipping Width 0.520m
Shipping Height 0.220m
Shipping Length 0.520m
