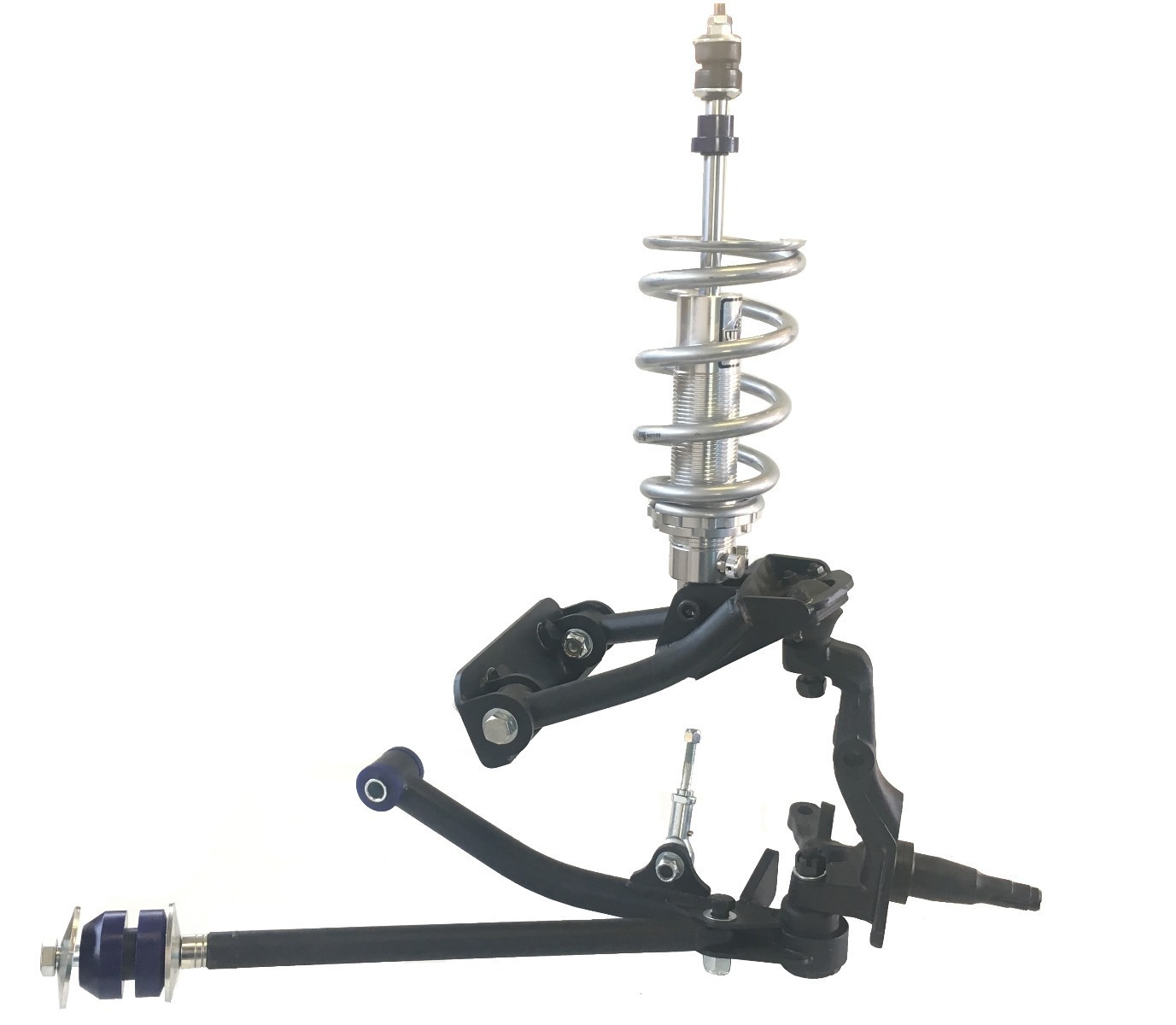

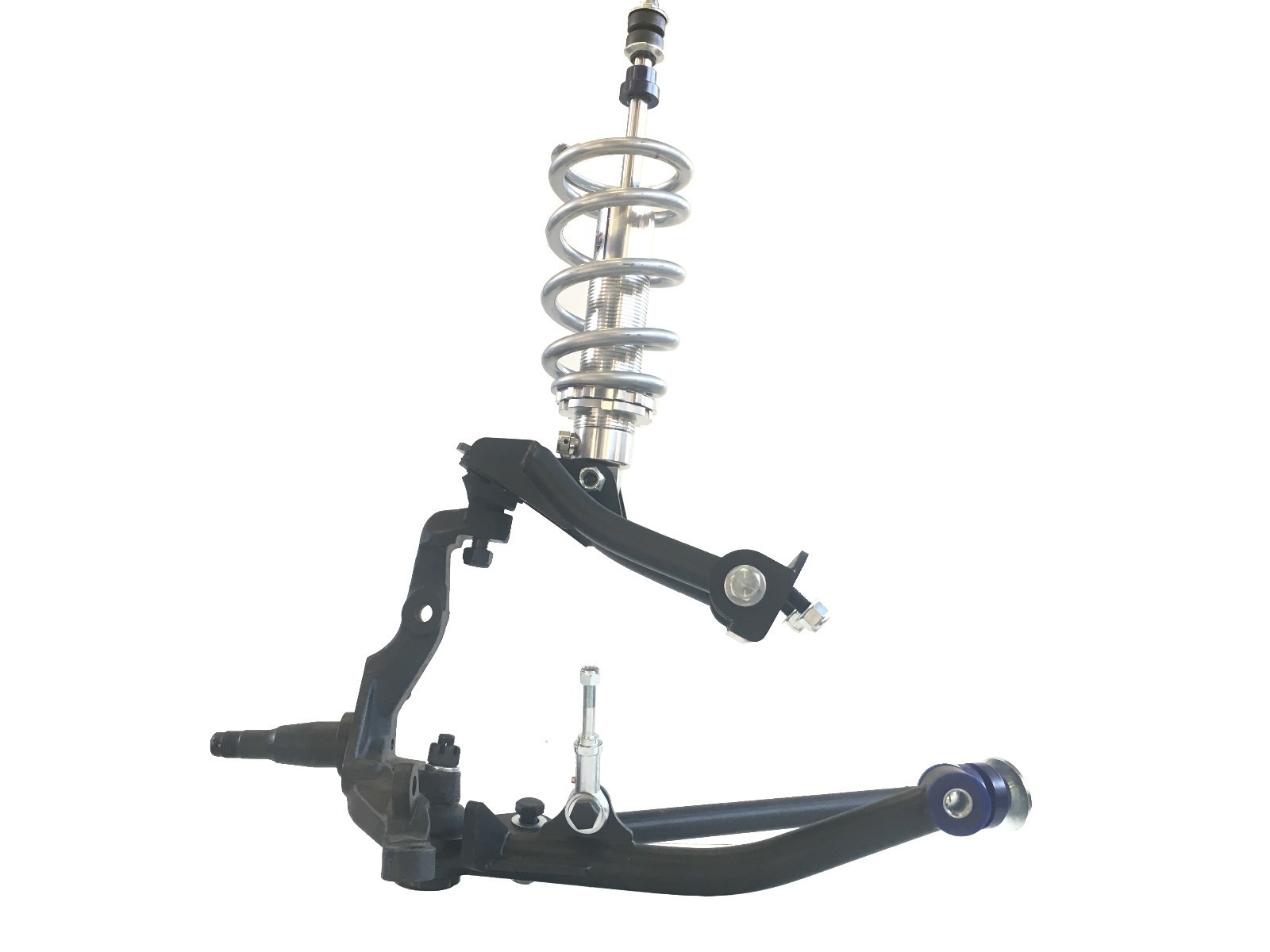

Coilover Conversion Kit for Front of XD & XE Fords
SKU: coverfkitfxdxe
Full Bolt in Kit
Engineers Report Supplied

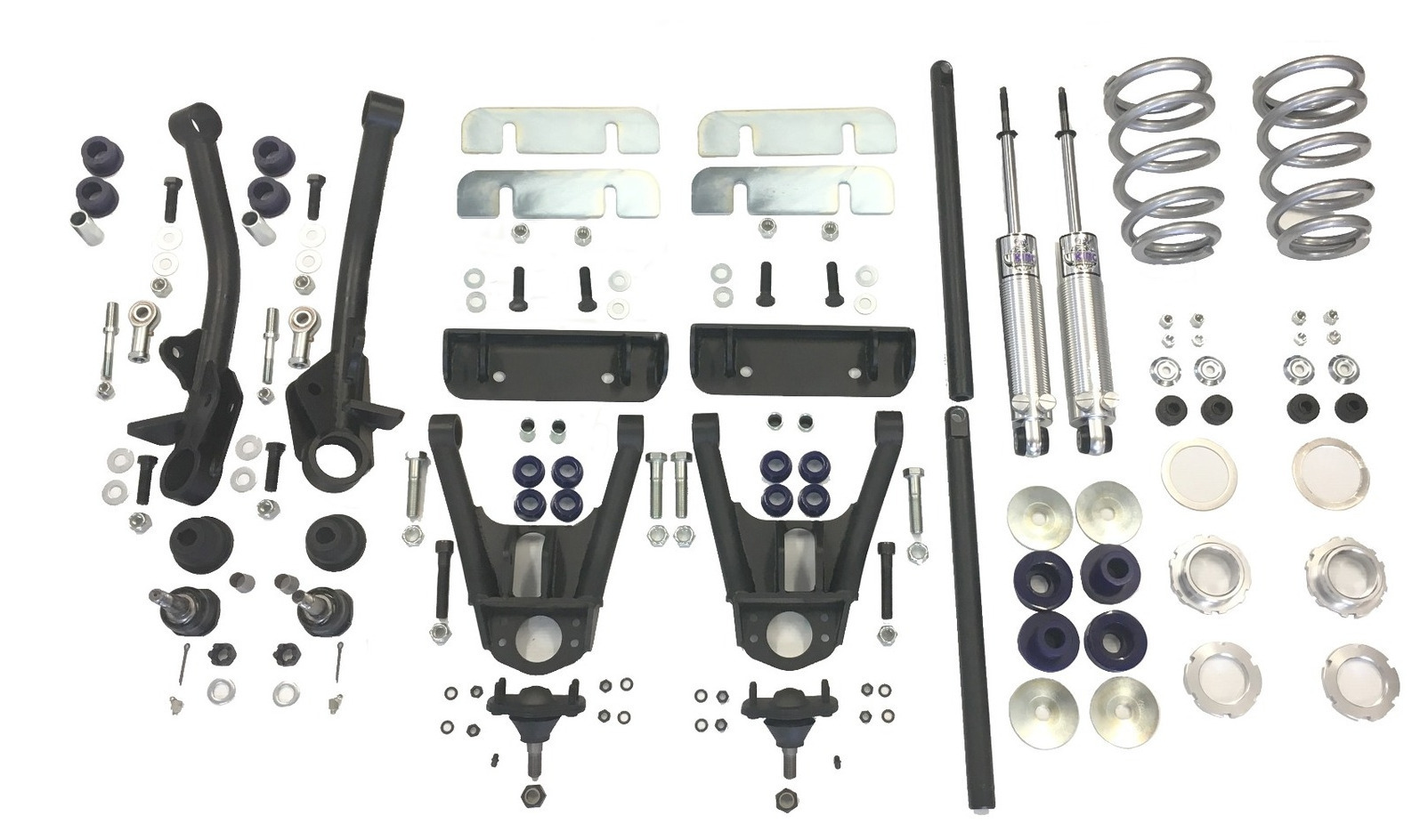

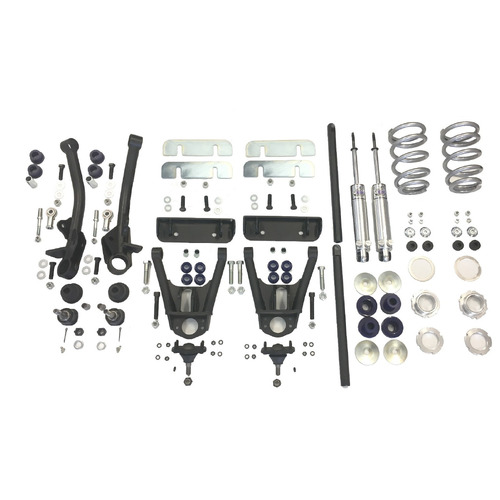

Included
| Upper Control Arm Mount |
| Tubular Upper & Lower Control Arms |
| Viking Double Adjustable Coil Overs |
| Ball Joints |
| Caster Bar |
| Sway Bar Link Pins |
| Bushes |
| Shims |
| Mounting Hardware |
Upper Control Arms
| 20 NB Extra Heavy Duty 27mm Outer Diameter Tube with 3.91mm Wall Thickness |
| 6mm Laser Cut Plate |
| Bolt in Ball Joint (BJ34) |
Lower Control Arms
| 25 NB Extra Heavy Duty 33mm Outer Diameter Tube with 4.75mm Wall Thickness |
| 4 & 8mm Laser Cut Plate |
| Screw in Ball Joint (K772) |
Upper Control Arm Bracket
| 5 & 6mm Laser Cut Plate |
Full Bolt in Kit
Engineers Report Supplied
Included
| Upper Control Arm Mount |
| Tubular Upper & Lower Control Arms |
| Viking Double Adjustable Coil Overs |
| Ball Joints |
| Caster Bar |
| Sway Bar Link Pins |
| Bushes |
| Shims |
| Mounting Hardware |
Upper Control Arms
| 20 NB Extra Heavy Duty 27mm Outer Diameter Tube with 3.91mm Wall Thickness |
| 6mm Laser Cut Plate |
| Bolt in Ball Joint (BJ34) |
Lower Control Arms
| 25 NB Extra Heavy Duty 33mm Outer Diameter Tube with 4.75mm Wall Thickness |
| 4 & 8mm Laser Cut Plate |
| Screw in Ball Joint (K772) |
Upper Control Arm Bracket
| 5 & 6mm Laser Cut Plate |
Full Bolt in Kit
Engineers Report Supplied
Included
| Upper Control Arm Mount |
| Tubular Upper & Lower Control Arms |
| Viking Double Adjustable Coil Overs |
| Ball Joints |
| Caster Bar |
| Sway Bar Link Pins |
| Bushes |
| Shims |
| Mounting Hardware |
Upper Control Arms
| 20 NB Extra Heavy Duty 27mm Outer Diameter Tube with 3.91mm Wall Thickness |
| 6mm Laser Cut Plate |
| Bolt in Ball Joint (BJ34) |
Lower Control Arms
| 25 NB Extra Heavy Duty 33mm Outer Diameter Tube with 4.75mm Wall Thickness |
| 4 & 8mm Laser Cut Plate |
| Screw in Ball Joint (K772) |
Upper Control Arm Bracket
| 5 & 6mm Laser Cut Plate |
| SKU | coverfkitfxdxe |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 31.0000kg |
| Shipping Width | 0.520m |
| Shipping Height | 0.320m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.086528000m3 |
