More info![Exedy Hyper Series Complete Clutch Kit [Trans: GM Tremec T56 6 Speed; Engine: Toyota 6 Cyl 1JZ & 2JZ]](/assets/thumb/exedy-ck-gt56-toyjz.jpg?20250828094007)
$2,995.00
or 4 payments of $748.75 with
Info
Make 4 interest-free payments of $748.75 fortnightly and receive your order now.
Exedy Complete Clutch Kit [Trans: GM Tremec T56 6 Speed; Engine: Toyota 6 Cyl 1JZ & 2JZ]
SKU: exedy-ck-gt56-toyuz_

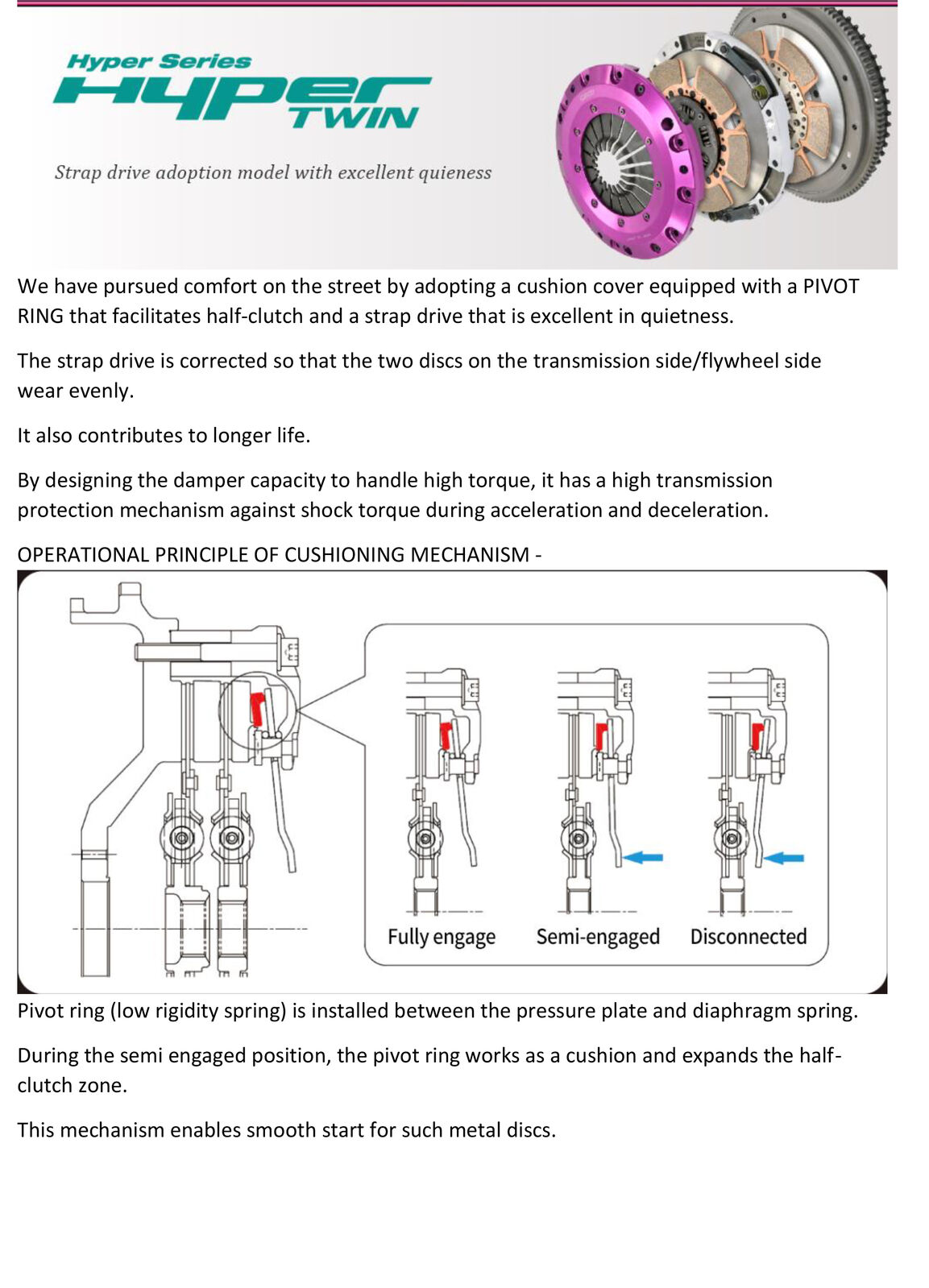

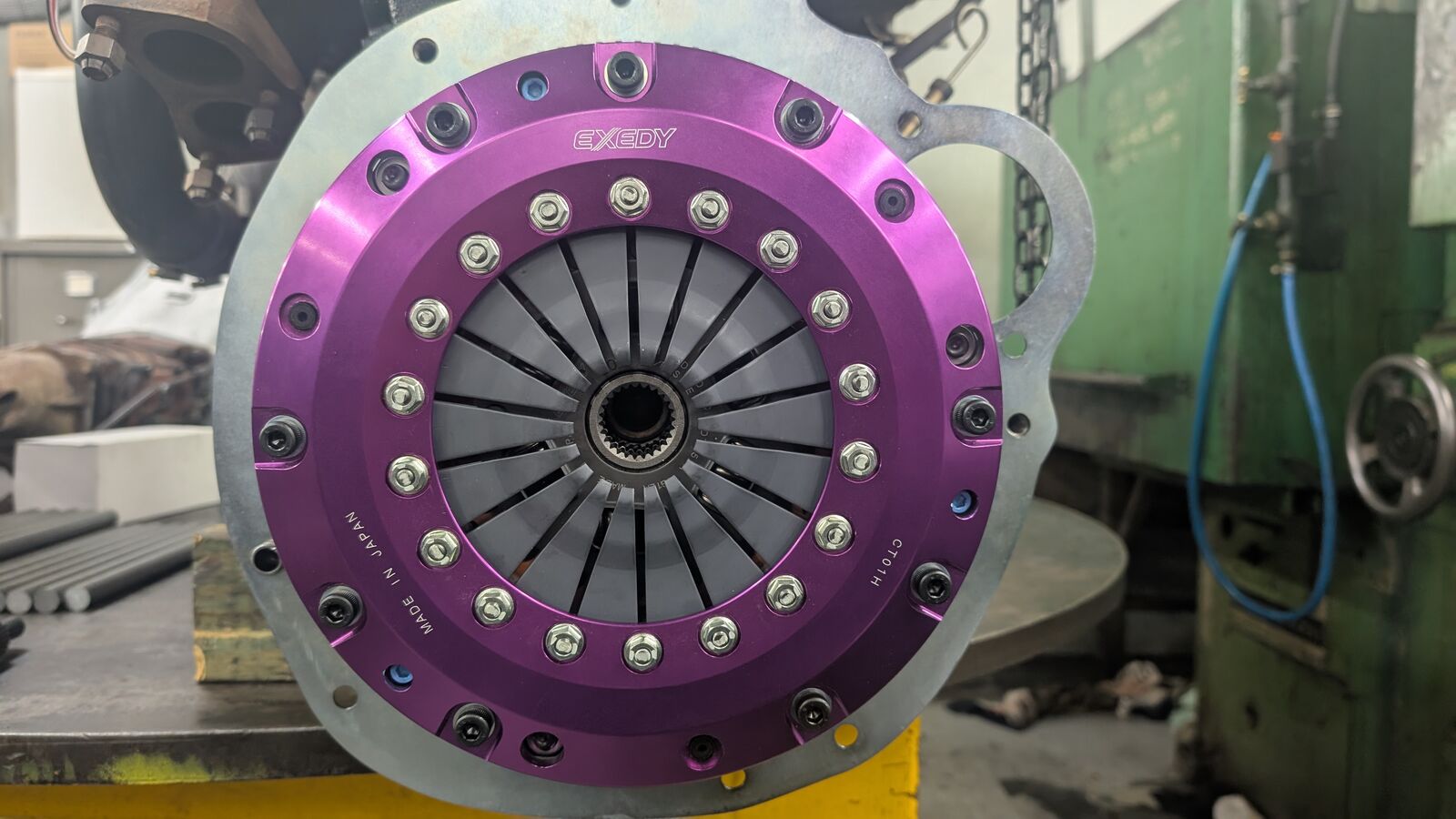

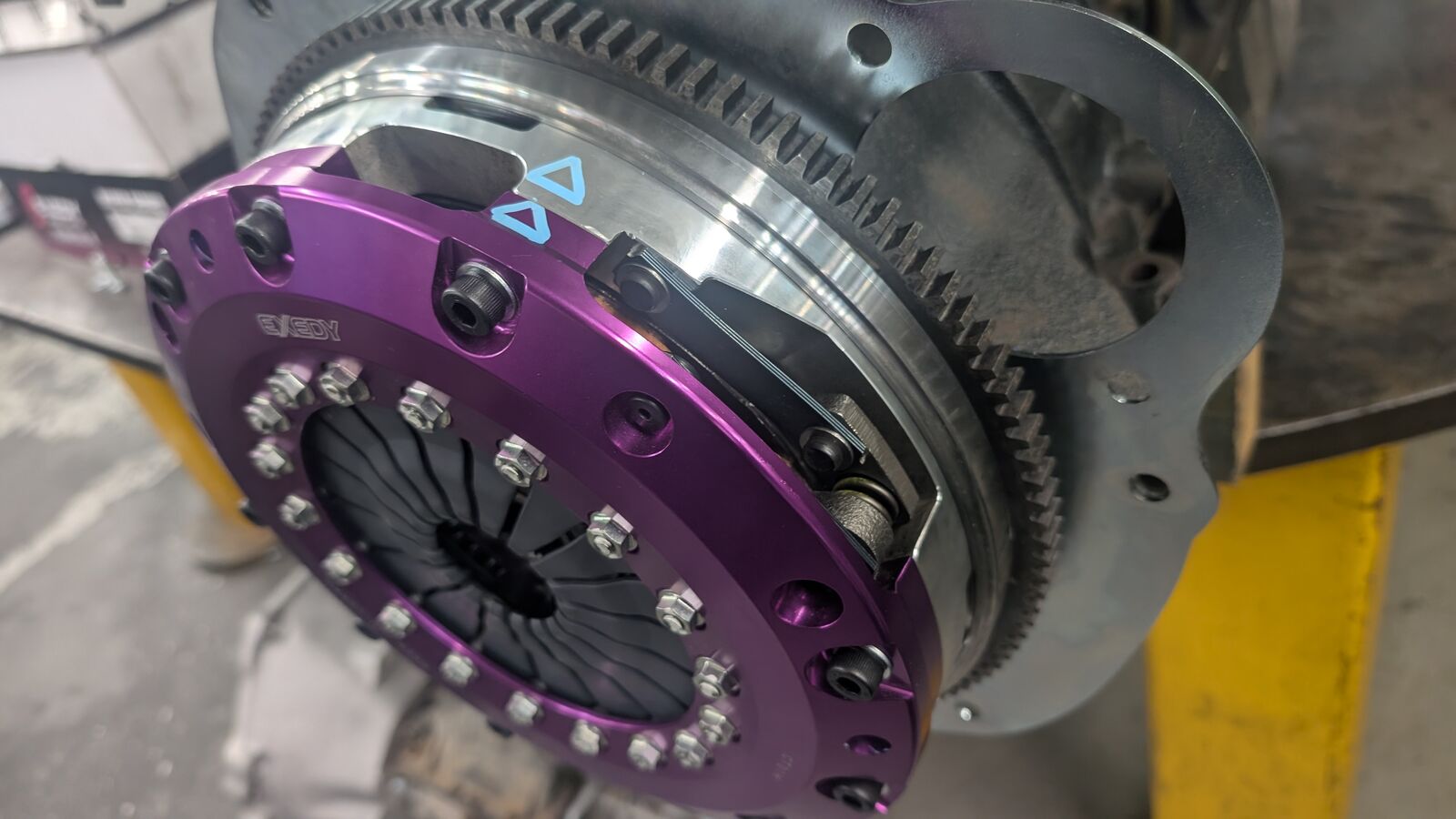

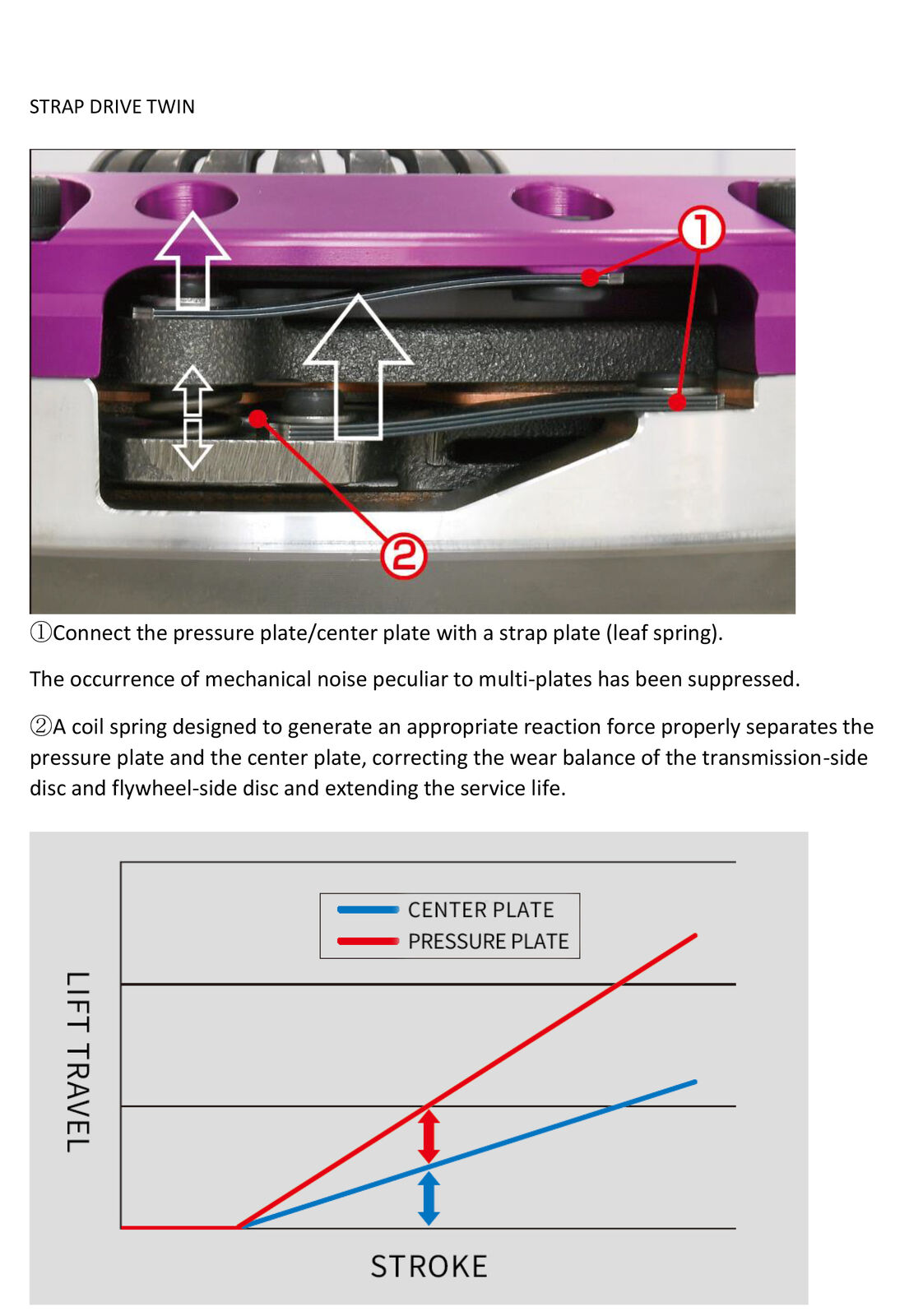

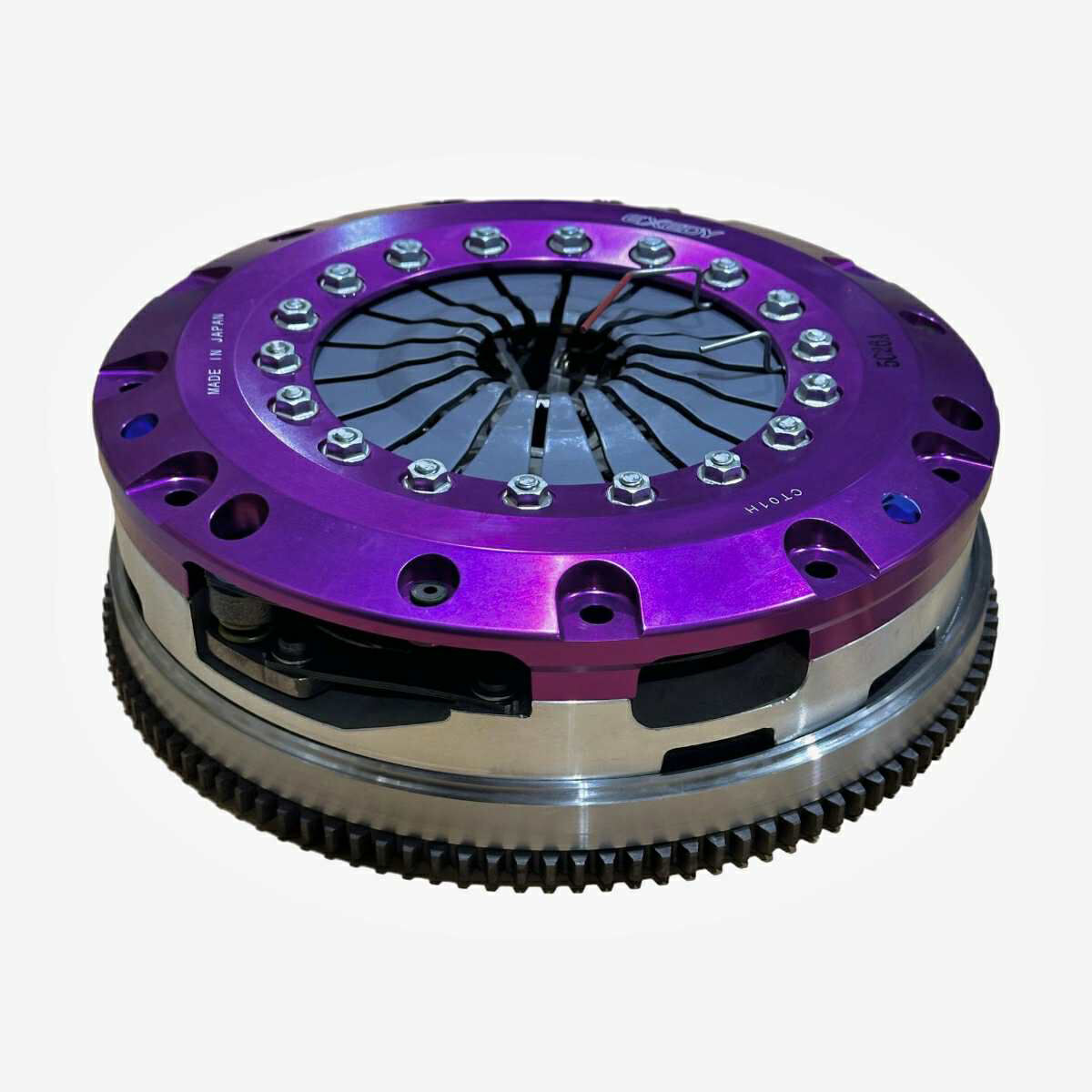

Exedy Hyper Series Twin Plate Clutch to suit Toyota 1UZ, 2UZ, 3UZ Conversion,
we recommend this to be used with a Castlemaine Rod Shop Adapter Plate OR Bellhousing kit.

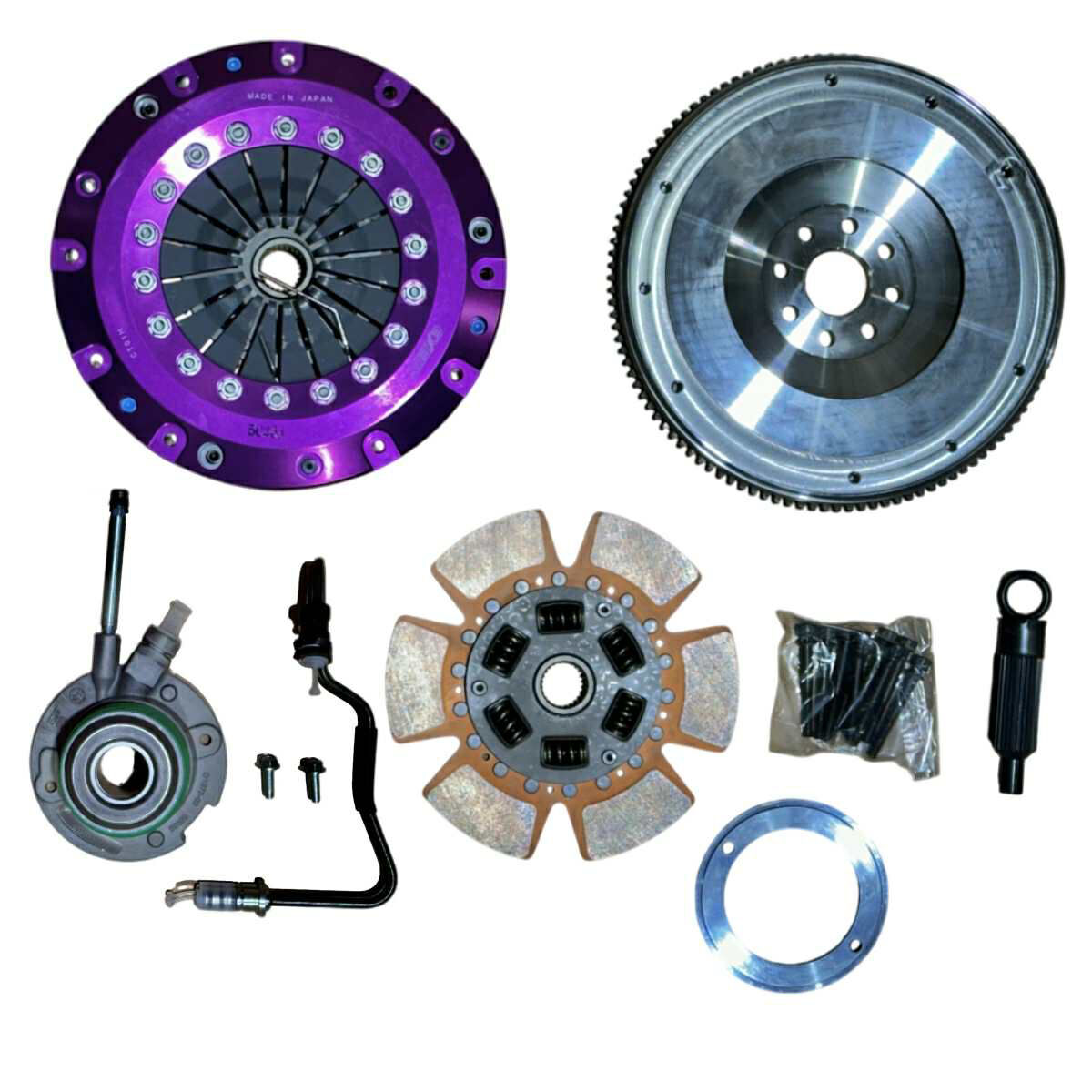

KIT INCLUDINGS -
CONCENTRIC SLAVE CYLINDER,
SLAVE CYLINDER SPACER,
SPIGOT BEARING,
ALIGNMENT TOOL.
A Rod Shop Billet Flywheel is also supplied
CLAMPING PRESSURE OF 1330 KGS AND HAS A TORQUE CAPACITY OF 1000 NEWTON METRES** AT THE FLYWHEEL - (**Exedy Safety factor)
Exedy Hyper Series Twin Plate Clutch to suit Toyota 1UZ, 2UZ, 3UZ Conversion,
we recommend this to be used with a Castlemaine Rod Shop Adapter Plate OR Bellhousing kit.
KIT INCLUDINGS -
CONCENTRIC SLAVE CYLINDER,
SLAVE CYLINDER SPACER,
SPIGOT BEARING,
ALIGNMENT TOOL.
A Rod Shop Billet Flywheel is also supplied
CLAMPING PRESSURE OF 1330 KGS AND HAS A TORQUE CAPACITY OF 1000 NEWTON METRES** AT THE FLYWHEEL - (**Exedy Safety factor)
Exedy Hyper Series Twin Plate Clutch to suit Toyota 1UZ, 2UZ, 3UZ Conversion,
we recommend this to be used with a Castlemaine Rod Shop Adapter Plate OR Bellhousing kit.
KIT INCLUDINGS -
CONCENTRIC SLAVE CYLINDER,
SLAVE CYLINDER SPACER,
SPIGOT BEARING,
ALIGNMENT TOOL.
A Rod Shop Billet Flywheel is also supplied
CLAMPING PRESSURE OF 1330 KGS AND HAS A TORQUE CAPACITY OF 1000 NEWTON METRES** AT THE FLYWHEEL - (**Exedy Safety factor)
CLAMPING PRESSURE OF 1330 KGS AND HAS A TORQUE CAPACITY OF 1000 NEWTON METRES** AT THE FLYWHEEL - (**Exedy Safety factor)
| SKU | exedy-ck-gt56-toyuz_ |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.520m |
| Shipping Height | 0.320m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.086528000m3 |
